MultiMesh! Cube
Product Summary
With MultiMesh!, a new era of screen printing begins. Instead of a traditional mesh, we use an innovative plastic film with exceptional properties: durable, precise, and completely closed. This special film is stretched over a self-tensioning frame, creating a 100% closed and stable base ready for imaging.

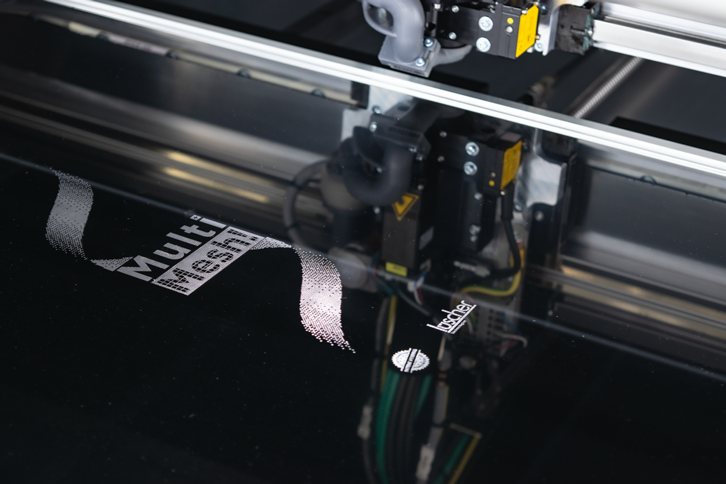

Unlike conventional UV-based systems, the image is applied using high-precision thermal lasers. The printable image is lasered directly into the surface, creating a mesh-like structure that allows ink to pass through exactly where it‘s needed without using any traditional fabric mesh at all.
Product Summary
With MultiMesh!, a new era of screen printing begins. Instead of a traditional mesh, we use an innovative plastic film with exceptional properties: durable, precise, and completely closed. This special film is stretched over a self-tensioning frame, creating a 100% closed and stable base ready for imaging.
Unlike conventional UV-based systems, the image is applied using high-precision thermal lasers. The printable image is lasered directly into the surface, creating a mesh-like structure that allows ink to pass through exactly where it‘s needed without using any traditional fabric mesh at all.
BENEFITS
- Up to 50% Lower Costs Per Screen
- No Mesh Fabric or Emulsion Required
- Up to 70% Fewer Work Steps
- Process Requires No Water or Chemicals
- Environmentally Friendly & Sustainable Screen Production
- Different Thread Counts & Mesh Sizes on a Single Screen
- No Yellow Light Needed
- Complete Screen Production in Just a Few Minutes
- High Flexibility
- Especially Suitable for Water-Based Inks: a Major Advantage Over Conventional Screen Production
NO Drying | NO Washing Out | NO Cleaning | NO Stretching Mesh | NO Gluing
Special Features
The MultiMesh! Cube is maintenance-free, energy-efficient, and user-friendly. It delivers fast textile imaging, supports all major screen brands, and features a cutting-edge laser system for top performance.
Specifications
EQUIPMENT SPECIFICATIONS
Model: MultiMesh! Cube
Laser Type: TH, 974 nm
Number of Laser Diodes: 32/48/64
Resolution: 1,200/1,270 dpi
Weight: 750 kg (1,653 lb)
Power Supply: 230 V/50 – 60 Hz/16 A
Power Consumption approx. 0.8 kW
Operating Conditions: 40 – 65 % humidity at 18 – 25 °C (64.4 – 77 °F)
Room Conditions: no yellow light required!, vibration-free floor
Min Frame Size (XS): 19.7 x 13.8 inches (500×350 mm)
Max Frame Size (XXL): 47.2 x 37.4 inch (1,200 x 950 mm)
